How to Choose a Thermal Cycling Chamber? Lab Companion TC Series Rapid Temperature Change Chamber Selection Guide

Avoid Low-Cost Equipment Pitfalls: Save on Hardware, Lose on Certification

In industrial procurement of thermal cycling test chambers, many overseas enterprises prioritize low upfront cost over compliance performance. Most budget devices feature nominal temperature ranges but fail to meet strict JEDEC international standard requirements in core hardware accuracy and temperature control stability. This leads directly to certification failures, costly re-tests, wasted R&D cycles, and unnecessary labor losses.

TheJESD22-A104 standard defines strict mandatory specifications for temperature ramp rate, temperature uniformity, and 4-stage cyclic control. If buyers only focus on maximum/minimum temperature values while ignoring critical indicators such as ramp accuracy, chamber uniformity, and programmable controller functions, the equipment will not pass official third-party audits.

Furthermore, entry-level low-cost chambers lack essential industrial functions including program storage, ramp rate locking, and automatic data logging. Operators must reset parameters manually for every test, resulting in high human error rates and poor test repeatability. The hidden replacement costs—including re-qualification, staff retraining, and project delays—far exceed the initial equipment price difference.

To solve global industry pain points, Lab Companion TC Series Rapid Temperature Change Test Chambers are professionally manufactured in China, fully compliant with JESD22-A104 and AEC-Q100 automotive standards. This guide provides a systematic selection framework for global buyers, helping you choose compliant, stable, and cost-effective thermal cycling solutions.

1. Three Mandatory Hardware Thresholds for International Standards

As the latest global specification for electronic component thermal cycling testing, JESD22-A104F.01 regulates all single-chamber and multi-chamber air-based thermal cycling systems. Qualified test equipment must satisfy the following three core criteria and adapt to two mainstream industry working conditions.

1.1 Core Mandatory Technical Requirements

① Precise & Lockable Linear Temperature Ramp Rate

The standard requires a maximum linear ramp rate of 15℃/min with stable and consistent speed control. Uncontrolled or fluctuating ramp rates will turn standard thermal cycling into thermal shock testing, invalidating all certification data. Certified chambers must support multi-level ramp rate locking to eliminate manual setup errors and ensure standardized test conditions.

② High Temperature Uniformity for Full-Chamber Consistency

Uniform temperature distribution across the entire test space is essential to avoid inconsistent sample performance and certification failures. Lab Companion TC Series delivers exceptional stability: temperature fluctuation ≤0.5℃, overall chamber temperature deviation from ±1.5℃ to ±2℃, ensuring high repeatability and fully compliant test results.

③ Independent 4-Stage Programmable Control

Standard thermal cycling consists of four independent phases: low-temperature soaking → linear heating → high-temperature soaking → linear cooling. Qualified equipment must support independent programming of heating rate, cooling rate, high/low temperature dwell time, enabling flexible editing and storage of customized test procedures for diverse product validation demands.

1.2 Condition A (Consumer Electronics) VS Condition G (Automotive Grade)

① JESD22-A104 Condition A for Consumer Electronics

Temperature range: -55℃～+85℃, 2–3 cycles per hour. Key requirements: stable ramp rate of 10–15℃/min, minimum dwell time of 10 minutes (Mode3). Widely adopted for daily reliability verification of consumer electronic products.

② JESD22-A104 Condition G for Automotive Grade (AEC-Q100)

Temperature range: -40℃～+125℃, standard ramp rate of 15℃/min, serving as the core test condition for automotive chip and component certification. Stricter specifications apply: 15℃/min precise linear rate locking and minimum 15-minute high/low temperature soaking to ensure full thermal equilibrium of solder joints and internal structures, guaranteeing valid automotive-grade test data.

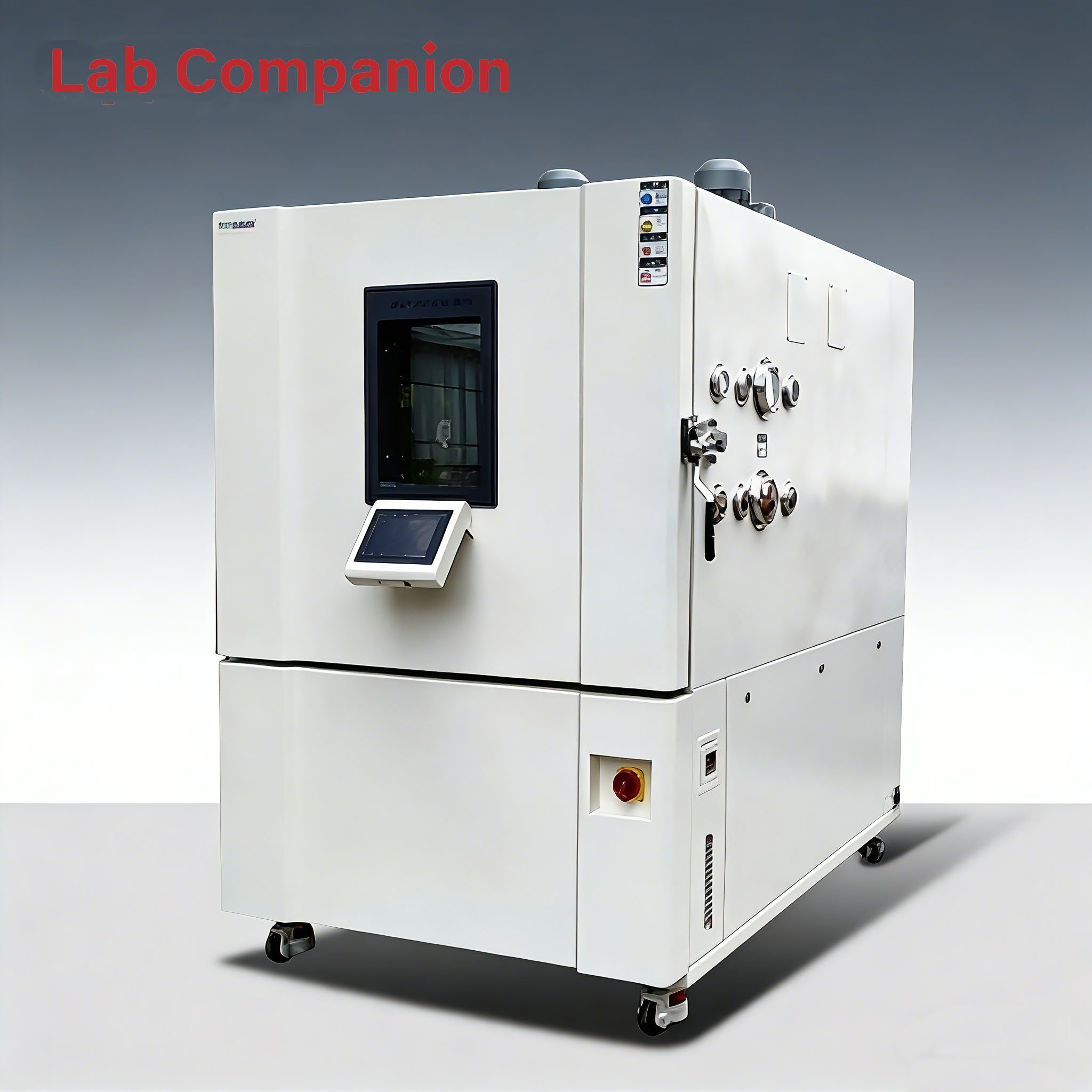

2. Lab Companion TC Series Full Range Selection Guide

Manufactured in China with strict quality control, the Lab Companion TC Series includes Standard Models and High-End Custom Models. The full product line covers small-scale R&D verification, large-scale finished product testing, consumer electronics, automotive, and new energy industries, fully aligned with global mainstream industrial standards.

2.1 Standard Series: Ideal for Consumer Electronics & General Laboratory Use

Core Parameters: Temperature range -70℃～+150℃, standard linear ramp rates of 5℃/min, 10℃/min, 15℃/min, fully covering all JESD22-A104 conditions (A~T).

Chamber Volumes: 80L, 150L, 225L, 408L, 800L. The 80L model is specially optimized for single-chip testing and small-batch R&D validation with outstanding cost performance.

Application Scenarios: Smartphones, tablets, wearable devices, TWS earphones, passive electronic components (resistors, capacitors, inductors), PCBA boards, and consumer-grade chips. Test data repeatability reaches 99.5%.

Procurement Recommendation: Suitable for small and medium-sized enterprises, consumer electronics manufacturers, and chip design laboratories. Standard TC models fully meet daily R&D, mass production sampling, and basic certification testing needs with optimal cost-efficiency.

2.2 High-End Custom Series: For Automotive, New Energy & Power Semiconductors

Enhanced Ramp Performance: Supports extended linear ramp rates of 20℃/min and 25℃/min. With optional liquid nitrogen auxiliary cooling, the maximum cooling rate can reach 30℃/min for extreme fast thermal cycling tests.

Custom Large Chamber Size: Supports non-standard customized volumes from 80L to 8000L, accommodating oversized samples such as complete modules and finished equipment.

Application Scenarios: Automotive control units, IGBT/SiC power semiconductor modules, new energy battery packs, and large-scale industrial electronic devices. Fully compliant with AEC-Q100 automotive certification and new energy reliability standards.

Procurement Recommendation: Recommended for automotive component suppliers, power semiconductor manufacturers, new energy vehicle enterprises, and high-level reliability laboratories to meet high-speed temperature cycling and large-size sample testing requirements.

3. Core Procurement Value: Certified Quality & Global Stable Support

3.1 Full Standard Calibration Before Delivery, Ready for Global Certification

All Lab Companion TC Series chambers complete full JESD standard calibration and inspection in China before shipment. Core indicators including temperature range, ramp rate, fluctuation, and uniformity are fully verified. The equipment can be directly used for third-party certification without secondary adjustment. It also complies with GB/T 10592, GB/T 2423, GJB 150A, IEC 60068 and other global mainstream reliability standards.

3.2 China Local Manufacturing & Global Online Technical Support

Lab Companion owns professional standardized manufacturing bases in China, ensuring strict production quality control and stable product performance. For global overseas customers, online remote technical support is provided throughout the whole lifecycle (no on-site door-to-door service for overseas regions). Our professional international support team offers equipment installation guidance, operational training, fault diagnosis, and regular calibration guidance to maintain long-term standard compliance and stable operation.

3.3 Free Standard Test Program Templates, Zero-Cost Scheme Deployment

The intelligent controller supports unlimited program storage, one-click calling, and batch reuse. Preloaded with verified mainstream standard templates including JEDEC_CondA and AEC_CondG, all free of extra customization fees. New operators can directly call standard programs to start tests, eliminating manual parameter errors, greatly improving test efficiency and data consistency, and reducing enterprise trial-and-error costs.

4. Industry-Specific Selection Suggestions

✅ Consumer Electronics & Digital Industry — TC Standard Series

For JESD22-A104 Condition A testing of mobile phones, wearables, and consumer terminals, 80L–225L standard models with 10–15℃/min ramp rates perfectly match full-scenario R&D, mass production, and certification demands with the best cost-performance.

✅ Automotive, Power Semiconductor & New Energy Industry — TC High-End Custom Series

For AEC-Q100 Condition G automotive-grade testing of vehicle controllers and power modules, 15–25℃/min high-speed customized models with volumes above 408L are preferred. They support precise rate locking and long-term stable compliance, meeting strict high-end certification requirements.

Conclusion: Choose Once, Use Stably for Long-Term

The core of thermal cycling chamber procurement lies in standard compliance, operational stability, and long-term reliability, not low unit price. Low-cost unqualified equipment will lead to certification failure, repeated tests, and project delays, bringing far higher hidden losses than equipment procurement costs.

As a China-manufactured high-quality test equipment brand, Lab Companion TC Series features a wide temperature range, high precision, standardized procedures, intelligent operation, and professional global online support. With standard models for conventional scenarios and customized models for high-end demands, it helps global enterprises select accurate, compliant, and cost-effective thermal cycling test solutions.
