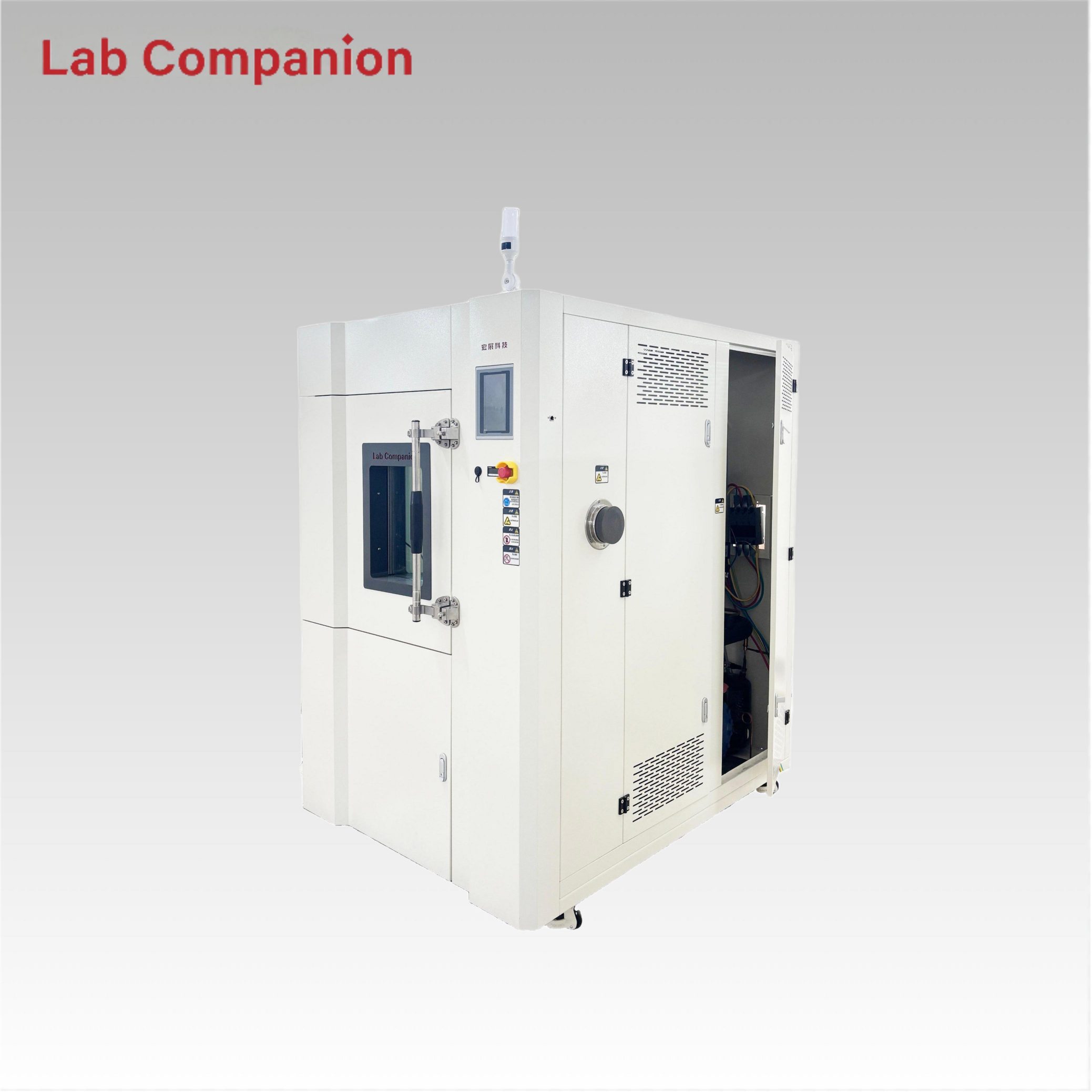

150L Water Cooled Rapid Temp Change Chamber

150L Rapid Temperature Chamber Water Cooled Q8

Features of the Rapid Temperature Change Test Chamber:

1.The test chamber features an advanced and rational structural design, with its supporting products and functional components reaching international advanced levels. It can meet the processing and production requirements of users for the aforementioned applications. It is easy to use, operate and maintain, boasts a long service life and an attractive appearance. Equipped with a user-friendly interface, it makes operation and monitoring simpler and more intuitive for users.

2.The rapid temperature change test chamber is a device capable of applying temperature stress, enabling rapid transitions between set temperature points (e.g., a temperature range of +85℃ to -40℃ with a heating rate of 12.5℃/min). It consists of a refrigeration system, heating system, control system, air circulation system, sensor system, and other components.

3.The rapid temperature change test chamber has a wide temperature control range and provides the following testing functions: rapid high and low temperature change tests, single or multiple temperature change tests (cycling). It can also perform low temperature (ultra-low temperature) and high temperature tests separately.

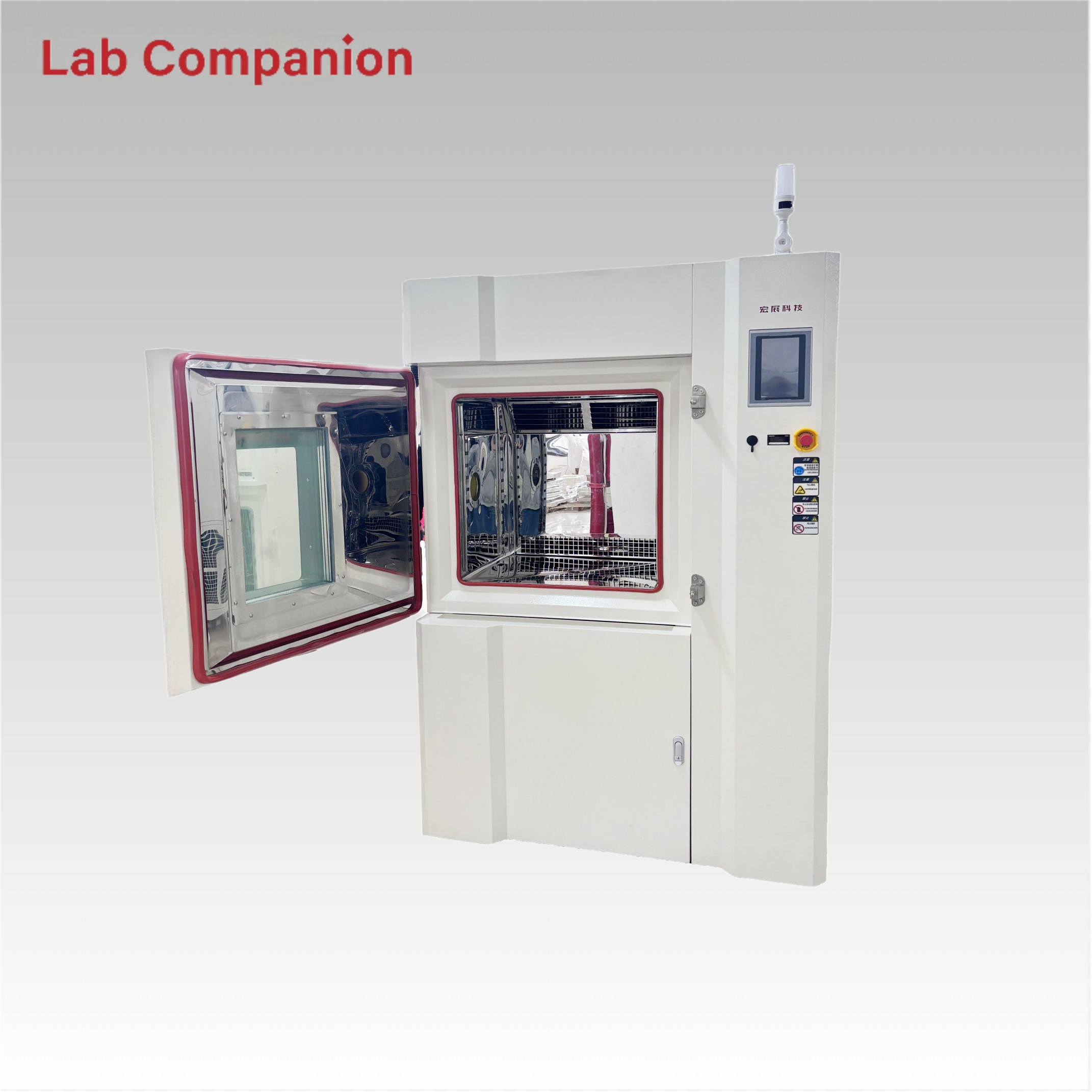

4.This rapid temperature change test chamber adopts SUS304 stainless steel for the inner chamber and cold-rolled steel plate with baking paint for the outer chamber, characterized by sturdiness and durability.

5.The control system is specifically designed for rapid temperature change testing, featuring strong expandability, simple operation, precise control, stability and reliability.

Refrigeration System:

The air supply mode inside the test chamber adopts an upper air supply and lower return air cooling system.

Refrigeration System and Compressor: To ensure the test chamber’s cooling rate and minimum temperature requirements, this chamber is equipped with a binary cascade air-cooled refrigeration system driven by Taikang hermetic compressors. The cascade refrigeration system consists of a high-temperature refrigeration cycle and a low-temperature refrigeration cycle, connected by an evaporative condenser, which also serves as the energy transfer medium. Heat from the working chamber is removed via the two-stage refrigeration system to achieve the target temperature.

The refrigeration system design incorporates energy regulation technology, an effective solution that ensures stable and normal operation of the refrigeration unit. This reduces the operating cost and failure rate of the refrigeration system to an economically optimal level.

(refrigeration room )

 150L Rapid Temp Chamber with Q8 Controller

Environmental Chamber Temperature Humidity Control

Intelligent Controller Environmental Chamber

150L High Speed Temperature Cycling Test Chamber

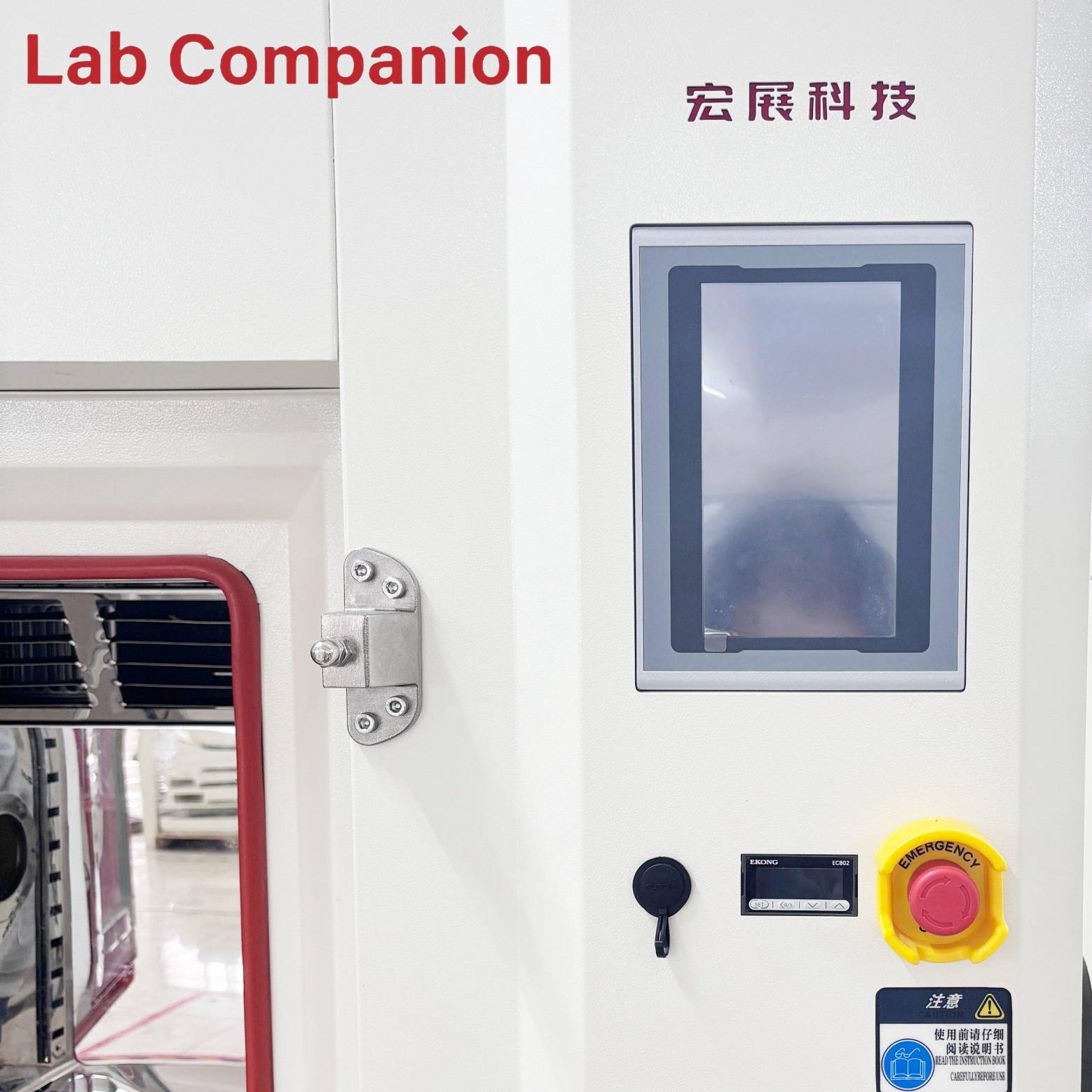

It is temperature and humidity programmable controller which equips with the general control, heating and cooling function by supporting high definition TFT-LCD touch screen and SD card.

Performance：

High accuracy

Precision control with 18bit A/D convertor

TEMP. : ±0.1% of full scale ±1 digit

HUMI. : ±1.0% of full scale ±1digit

      Optimizing PID group

Precision control by 6 groups of TEMP./HUMI. and 3 group of temperature only

      Specialized controller

As a specialized controller for temperature and humidity, synchronized control system with PT-PT, PT-DCV

     Specialized humidity control

Humidity control algorithm implements a stable control according to the equipment size。

      Heating cooling control

Separated hardware

Configuration separated by display, control, and input / output board
Available to mount panel mount and VESA mount
